z scales

z scales

Usage

scale_z_continuous(name = waiver(), ..., range = c(0.1, 1), guide = "none")

scale_z_binned(name = waiver(), ..., range = c(0.1, 1), guide = "none")

scale_z_discrete(...)

scale_z_ordinal(name = waiver(), ..., range = c(0.1, 1), guide = "none")

Arguments

name

The name of the scale. Used as the axis or legend title. If waiver(), the default, the name of the scale is taken from the first mapping used for that aesthetic. If NULL, the legend title will be omitted.

...

Other arguments passed on to continuous_scale(), binned_scale(), or discrete_scale() as appropriate, to control name, limits, breaks, labels and so forth.

range

Output range of z values. Must larger than 0.

guide

A function used to create a guide or its name. See guides() for more information.

See also

geom_tile3d()/geom_rect3d()

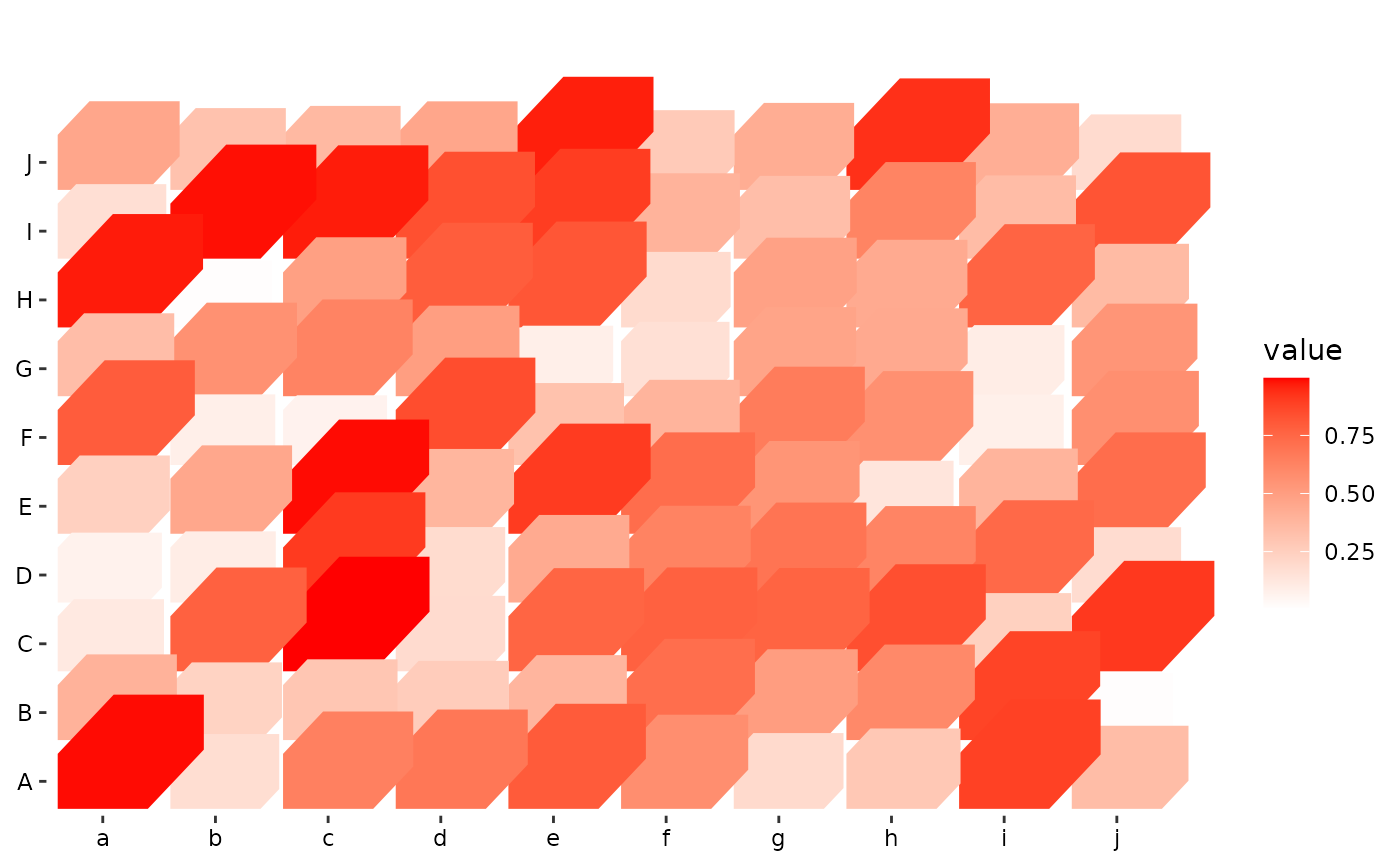

Examples

set.seed(7)
mat <- matrix(runif(100), 10)
rownames(mat) <- LETTERS[1:10]
colnames(mat) <- letters[1:10]
ggheatmap(mat,
    filling = FALSE,
    theme = theme(
        legend.box.spacing = unit(10, "mm"),
        plot.margin = margin(t = 15, unit = "mm")
    )
) +
    geom_tile3d(aes(fill = value, z = value, width = 0.8, height = 0.8)) +
    scale_z_continuous(range = c(0.2, 1)) +
    coord_cartesian(clip = "off")
