Control Plot Tagging in Layouts

Source: R/alignpatch-tags.R
layout_tags.Rd

These arguments control how tags (labels) are assigned to plots within a layout, including nested layouts. Tags can be inherited from a parent layout, suppressed entirely, or generated automatically in various sequences. Formatting can be customized with separators, prefixes, and suffixes.

Usage

layout_tags(
  tags = character(0),
  sep = waiver(),
  prefix = waiver(),
  suffix = waiver()
)

Arguments

tags

Tag templates for plots in the layout. If waiver() (default), tags are inherited from the parent layout. If there is no parent layout, no tags are applied.

If NULL, tags are suppressed for this layout. In a nested layout, the parent layout's tag is applied to the the entire layout as a single unit.

If not NULL, must be one of:

  • A character vector specifying explicit tags for each plot, or

  • A single character indicating an auto-generated sequence:

    • 'a': lowercase letters

    • 'A': uppercase letters

    • '1': numbers

    • 'i': lowercase Roman numerals

    • 'I': uppercase Roman numerals

When a parent layout exists, each plot's tag is prefixed with the parent tag and separated by sep.

sep

Separator between the parent tag (without its own prefix and suffix) and the current tag.

prefix

String prepended to the tag.

suffix

String appended to the tag.

Details

The appearance of tags is controlled by the plot.tag, plot.tag.placement, plot.tag.position, and plot.tag.location theme elements. Tag styling is first retrieved from the plot's theme; if not found there, the layout's theme is used.

plot.tag.placement (new in ggalign) determines where the tag is positioned—either within the plot itself ("plot") or on the canvas where all plots are placed ("canvas"). When set to "canvas", the tag will be fixed and does not move with the plots, even when using free_vp() or other helper functions. This ensures that all tags are consistently aligned across the canvas.

Examples

p1 <- ggplot(mtcars) +
    geom_point(aes(mpg, disp))
p2 <- ggplot(mtcars) +
    geom_boxplot(aes(gear, disp, group = gear))
p3 <- ggplot(mtcars) +
    geom_bar(aes(gear)) +
    facet_wrap(~cyl)

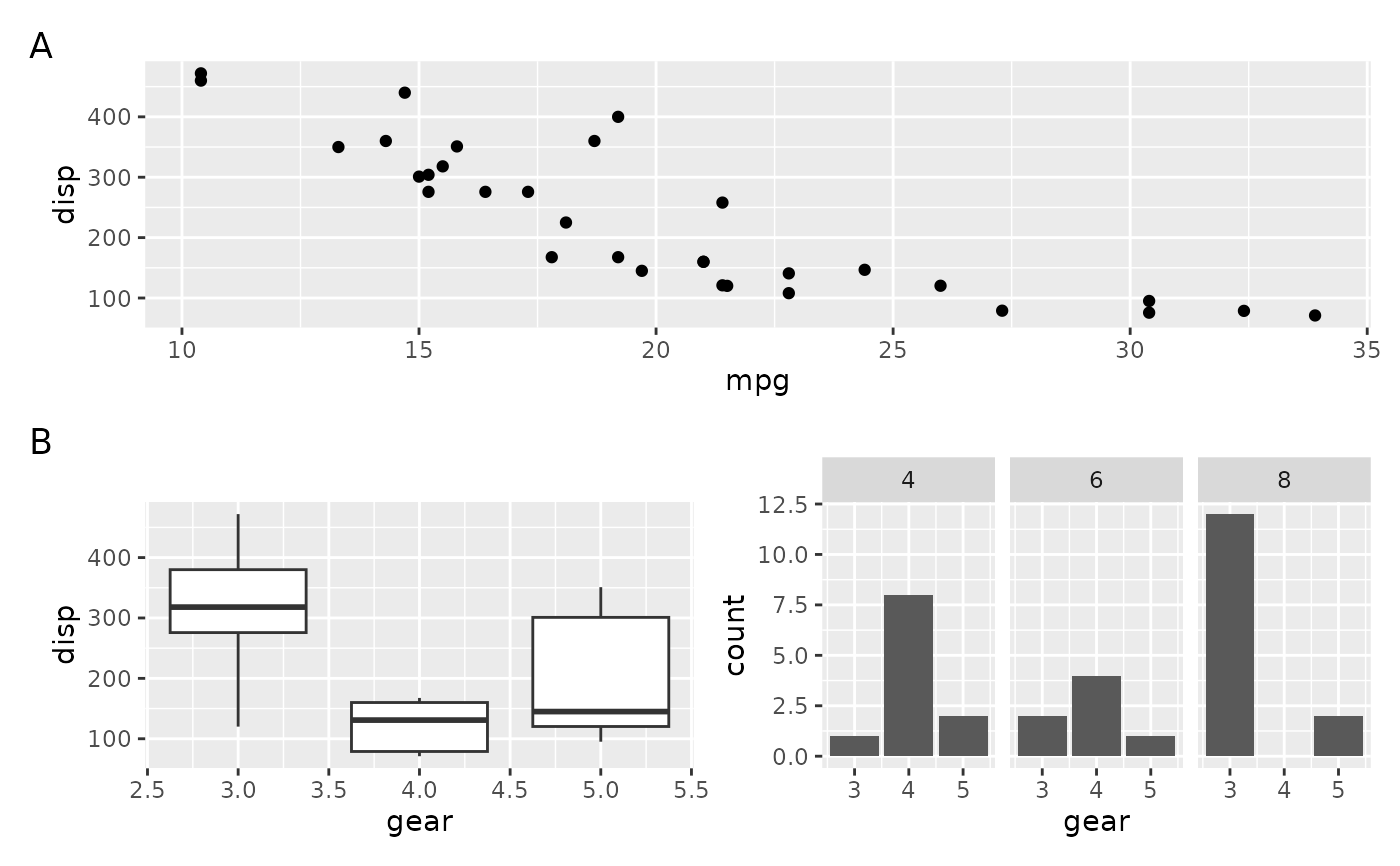

# Add tags to plots, by default the plot in nested layout will get own tag
align_plots(p1, align_plots(p2, p3), ncol = 1) + layout_tags("A")


# Treat a nested layout as a single plot by disabling its internal tags
align_plots(p1, align_plots(p2, p3) + layout_tags(NULL), ncol = 1) +
    layout_tags("A")

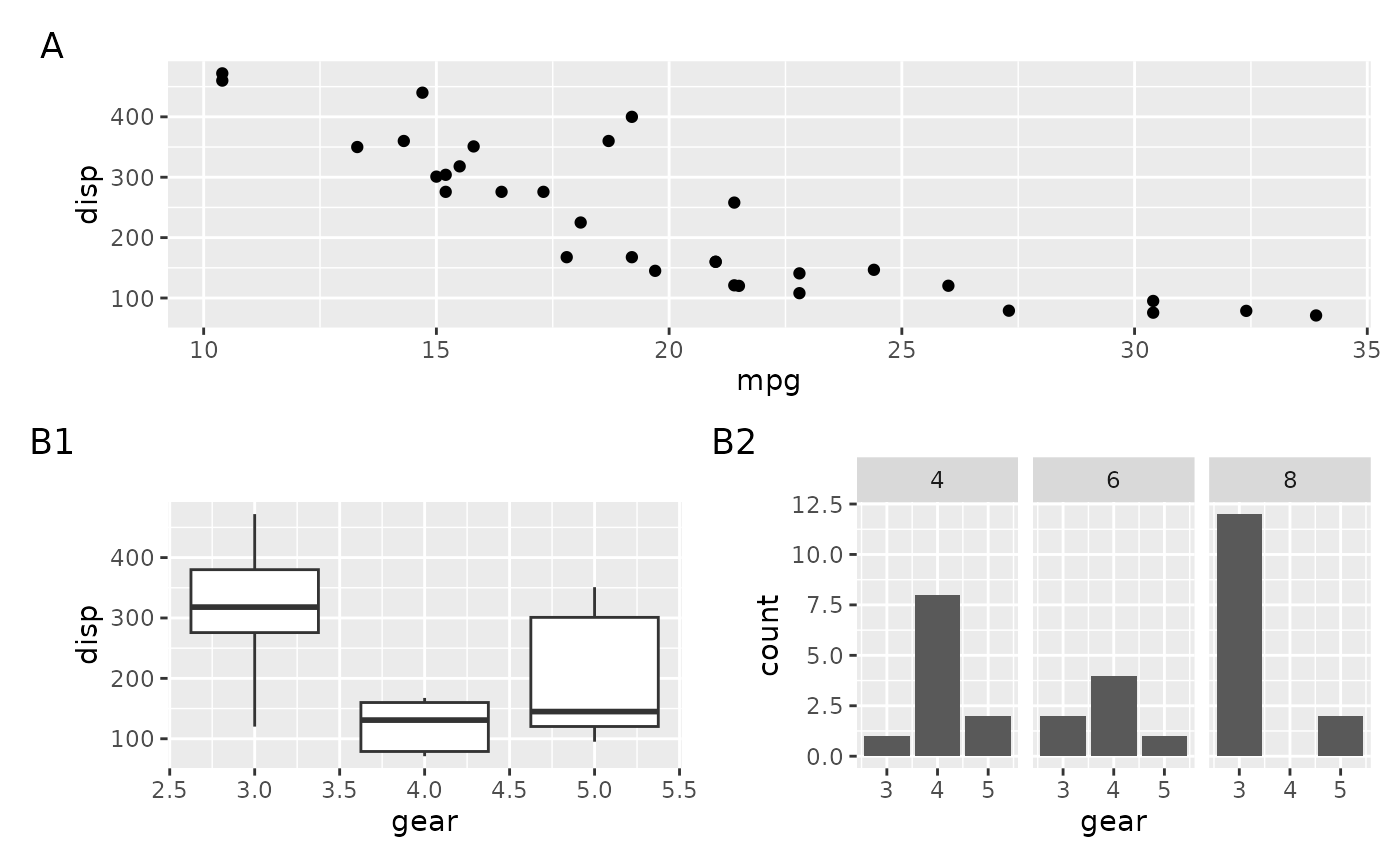

# Apply multilevel tagging — outer layout uses letters, inner layout uses
# numbers
align_plots(
    p1,
    align_plots(p2, p3) + layout_tags(1),
    ncol = 1
) +
    layout_tags("A")

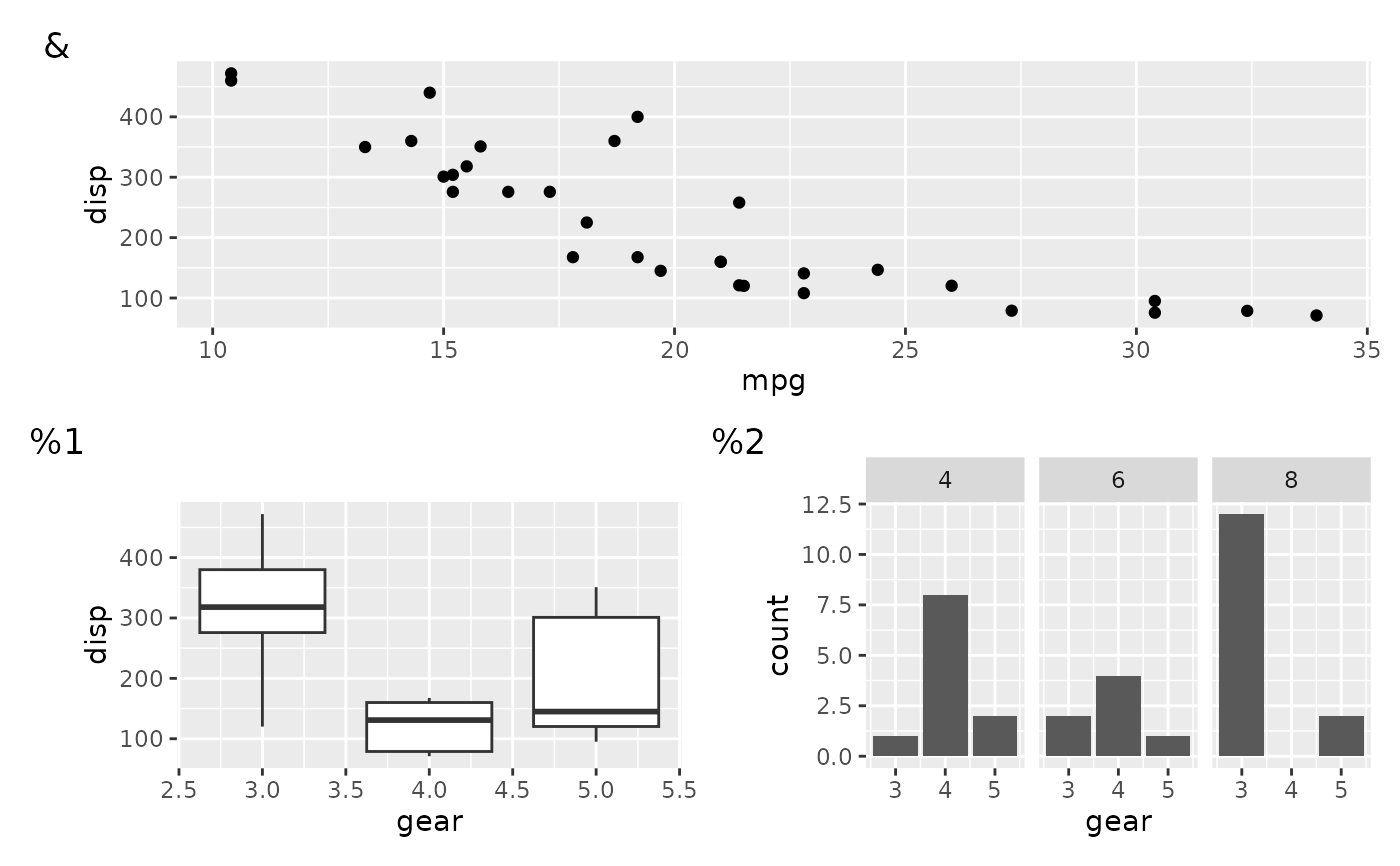

# Use a custom tag sequence, possibly mixed with standard sequences
align_plots(
    p1,
    align_plots(p2, p3) + layout_tags(1),
    ncol = 1
) +
    layout_tags(c("&", "%"))
